Adapter Cable Kit with 12+8 pin for FCA

4.9 (5)
26 Sold
$25.69 $0.00

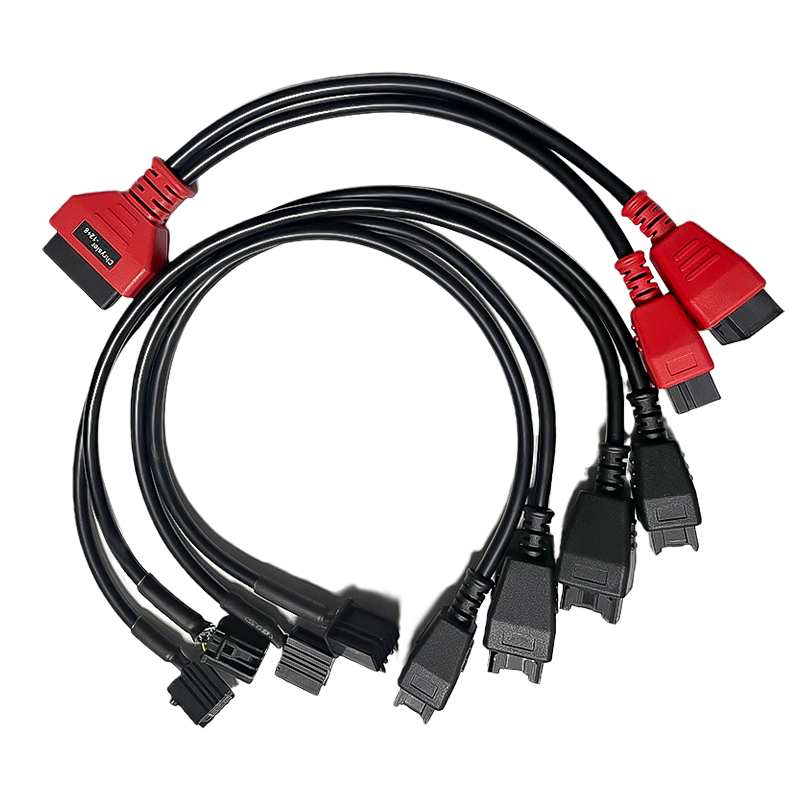

This adapter cables kit provides one diagnostic adapter cable 12+8 (red), two 12-pin extension cables(12pin Female-12pin Male) and two 8-pin(8pin Female-8pin Male) extension cables (black).
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (35)
  • Adapter Cable Kit with 12+8 pin for FCA
  • Adapter Cable Kit with 12+8 pin for FCA
1/1
  • Adapter Cable Kit with 12+8 pin for FCA
  • Product Description
Wholesale or OEM, contact: sales@autodiagtech.com

In the provided figure, there are two types of extension cables: a 12-pin green cable and an 8-pin red cable. These cables connect the original car OBD harness and the SGW box, respectively.

The first image depicts the original car circuit state, where the plug has no impact on the original car circuit and allows normal access to diagnostic scanners. By disconnecting the extension cable (as shown in figure 2), you can connect the red 12+8 diagnostic line from this set through the extension cable. This enables the use of diagnostic devices such as Multiecuscan, X431, Autel scanners, along with their corresponding diagnostic heads.

Installation diagram:
1. The SGW gateway is located beneath the steering wheel in the driver's seat. To access it, you need to remove the guard above the throttle brake.
