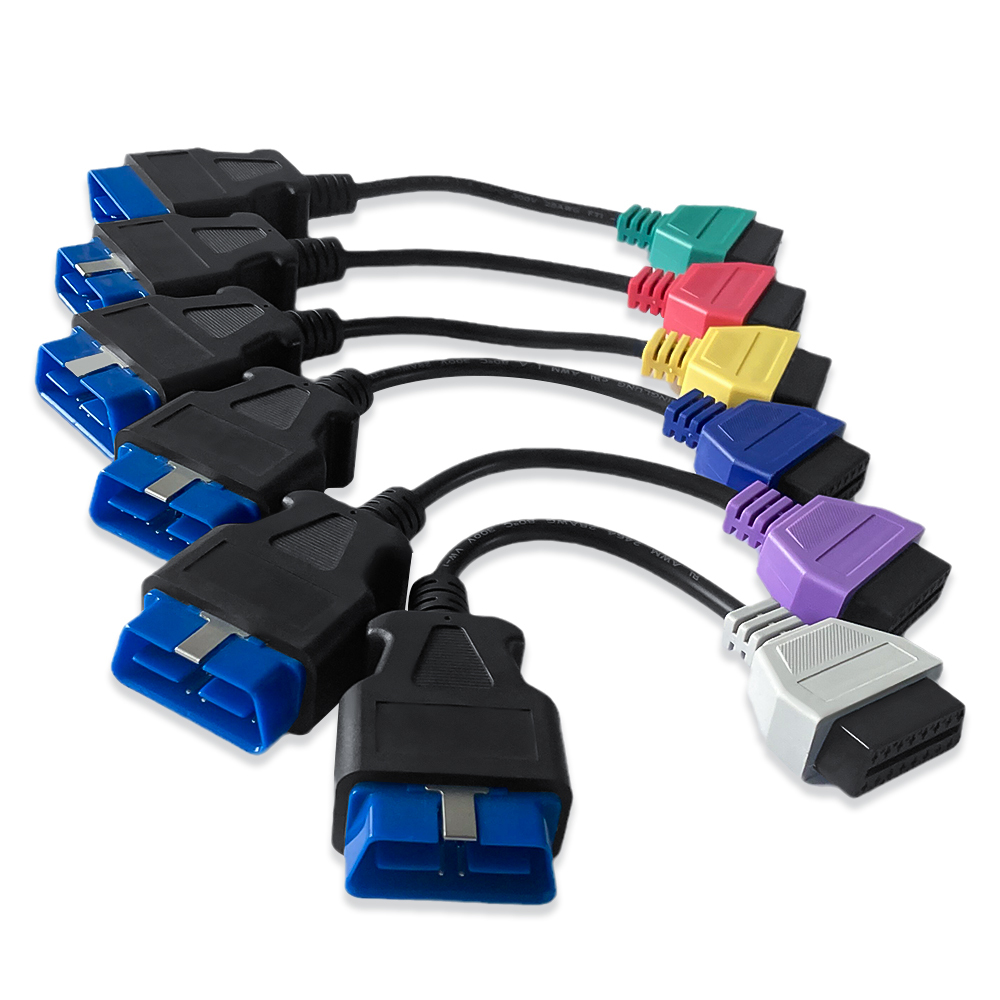

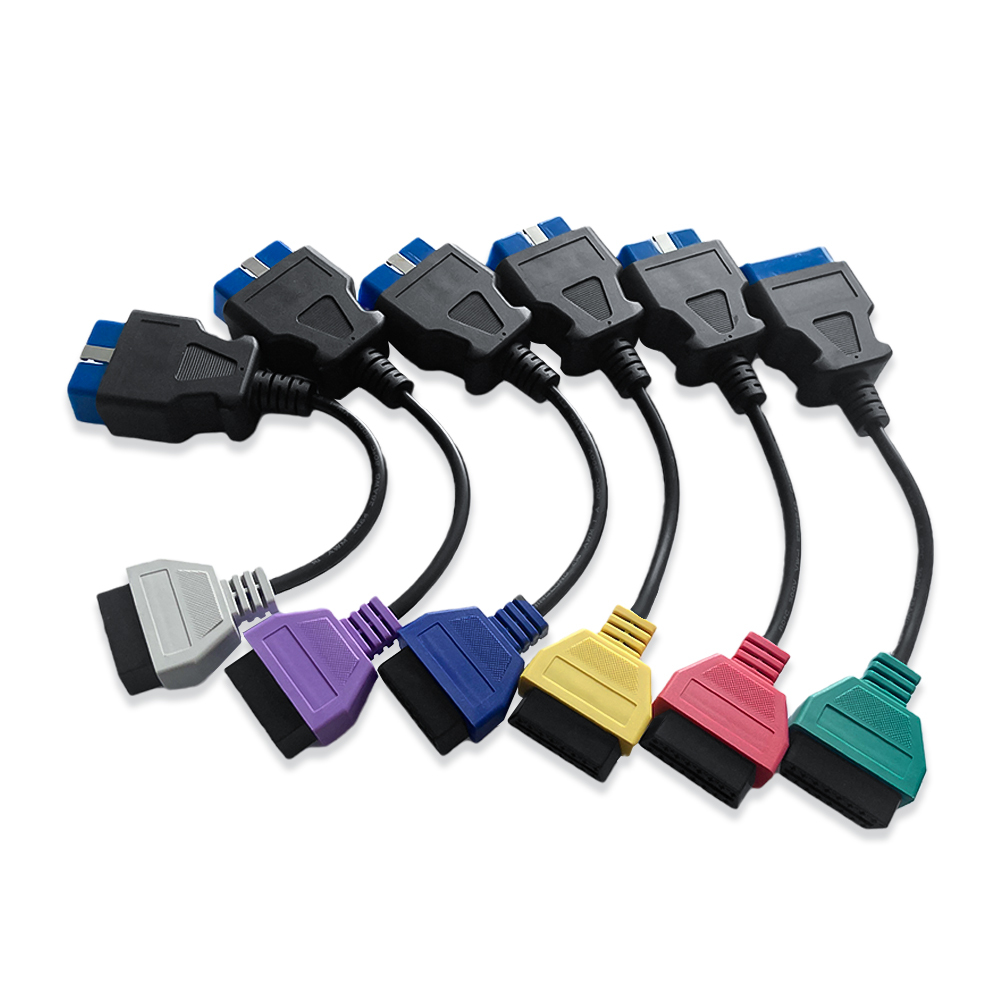

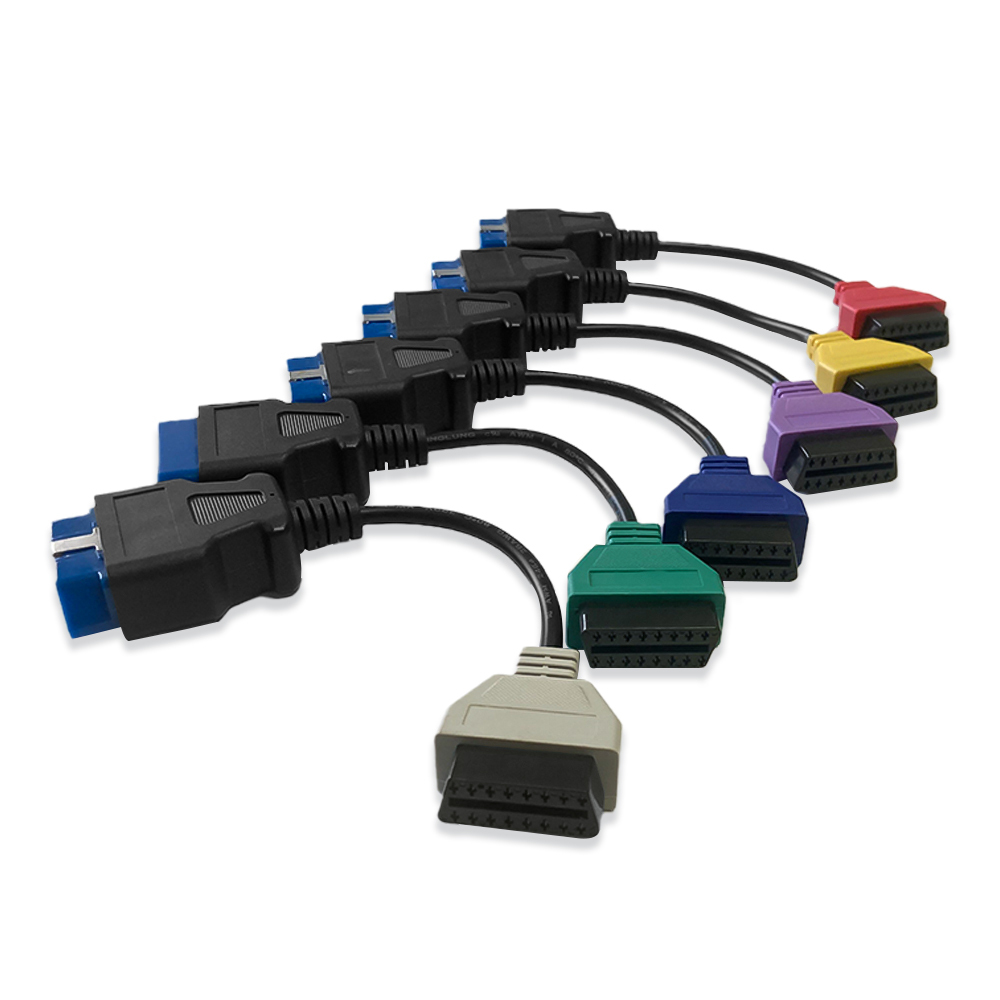

Good Quality Version Cable Set for FiatECUscan 6pcs/Set For Alfa Romeo and for Lancia OBD2 Diagnostic Adapter Cable

Specification:

Green Adaptor Lead (MultiECUScan / for FiatEcuScan Adaptor 1) = Engine, ABS, Power Steering

Red Adaptor Lead (MultiECUScan / for FiatEcuScan Adaptor 2) = Airbag

Yellow Adaptor Lead (MultiECUScan / for FiatEcuScan Adaptor 3) = CAN

Purple Adaptor Lead (MultiECUScan / for FiatEcuScan Adaptor 4) = Electric Hood

Blue Adaptor Lead(MultiECUScan / for FiatEcuScan Adaptor 5)= Control Module

Gray Adaptor Lead(MultiECUScan / for FiatEcuScan Adaptor 6)= base control module

1.Green ABS / Power Sreeing adapter lead ( "Adapter 1" on MultiECUScan website)

-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.

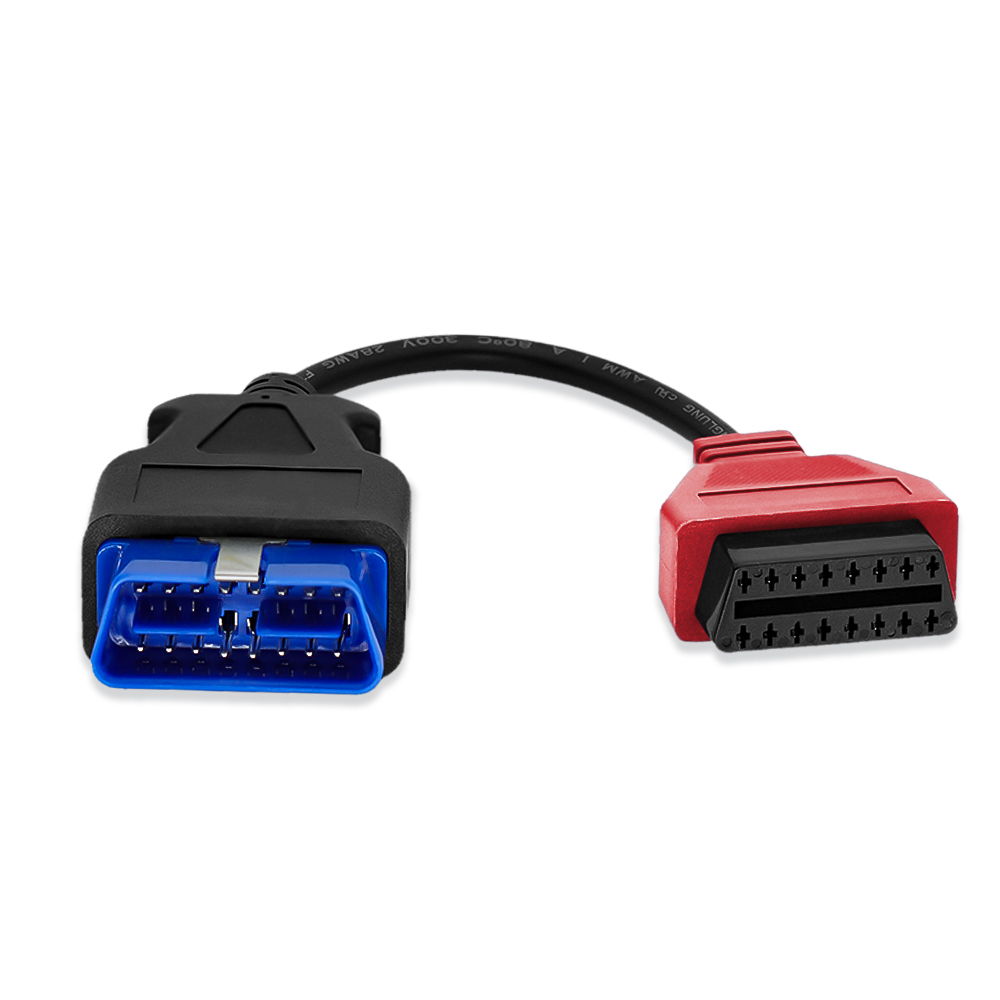

2.Red Airbag adapter lead ( "Adapter 2" on MultiECUScan website)

-Designed to allow access to the Airbag system on supported vehicles.

This adapter has a red connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.

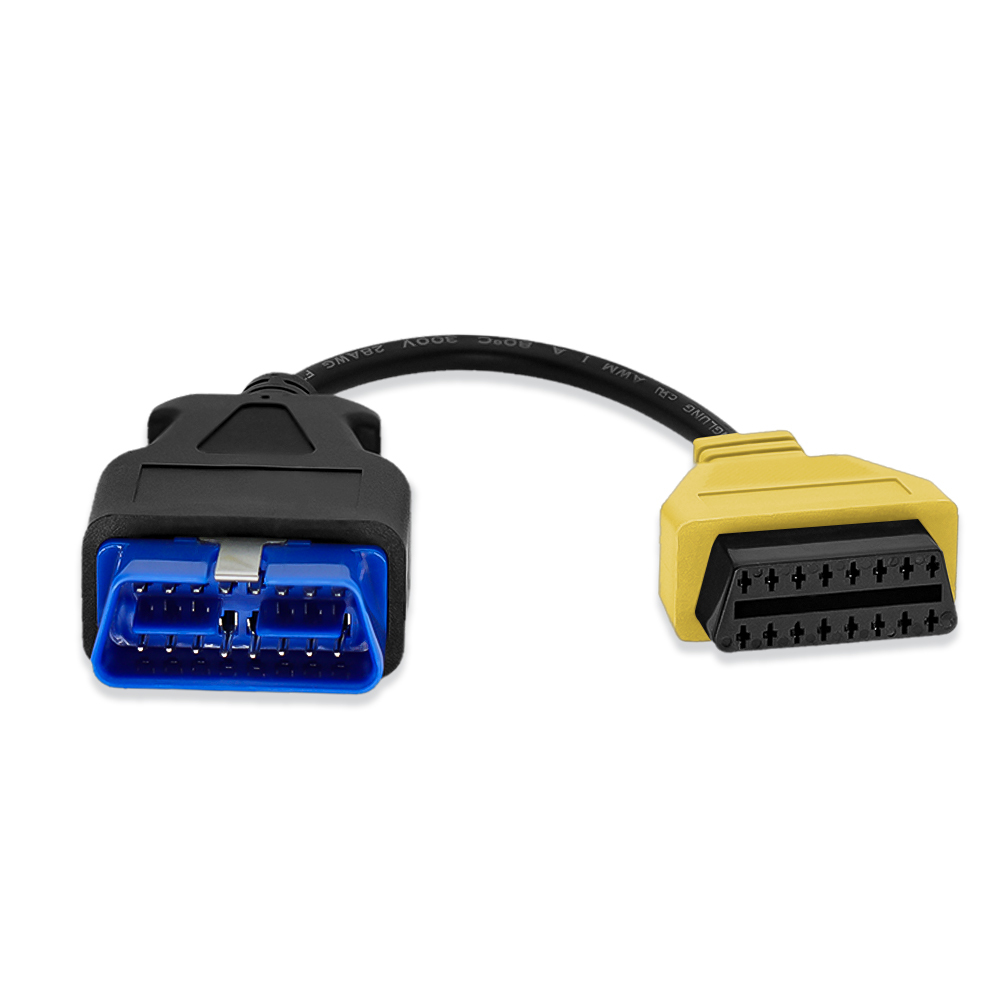

3.Yellow CAN adapter lead ( "Adapter 3" on MultiECUScan website)

-Designed to allow access to the low-speed CAN system on supported vehicles.

This adapter has a yellow connector on one end for easy identification.

Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9

Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.

4.Purple Electric hood adapter lead ( "Adapter 4" on MultiECUScan website)

-Designed to allow access to the electric hood system on supported vehicles.

This adapter has a purple connector on the end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.

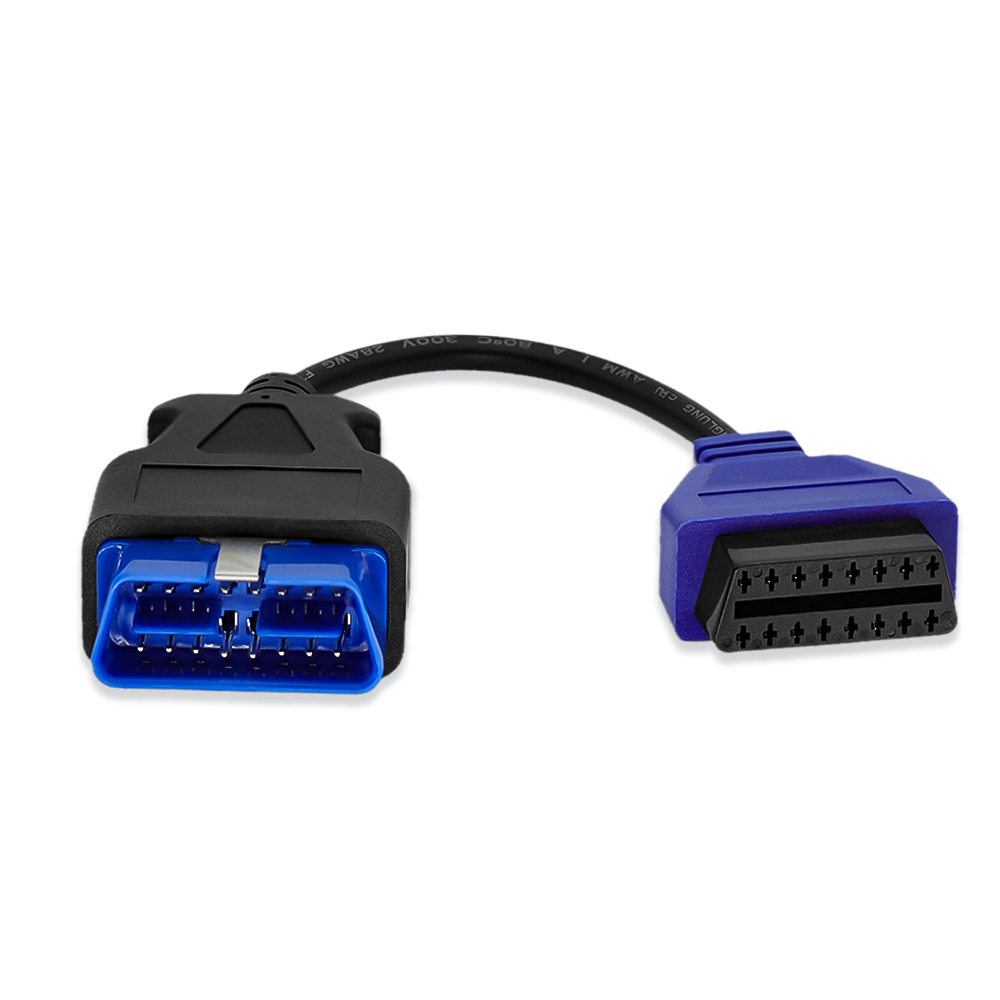

5.Blue Control Module Adapter Wire Design allows access to enhanced features on the vehicle (eg, multimedia, blind spot sensors, etc.)

6.Gray base control module adapter wire designed to allow access to basic functions on the vehicle (eg headlights, parking controller, ABS, electric steering, etc.)

Support and Parameters：

This product supports the following brands vehicles:

for Jeep

for Chrysler

for Dodge

for FIAT

for LANCIA

Please refer to the 'Multiecuscan' official website for more information

Package Includes：

1x 6PCS Diagnostic cables FOR Fiat
